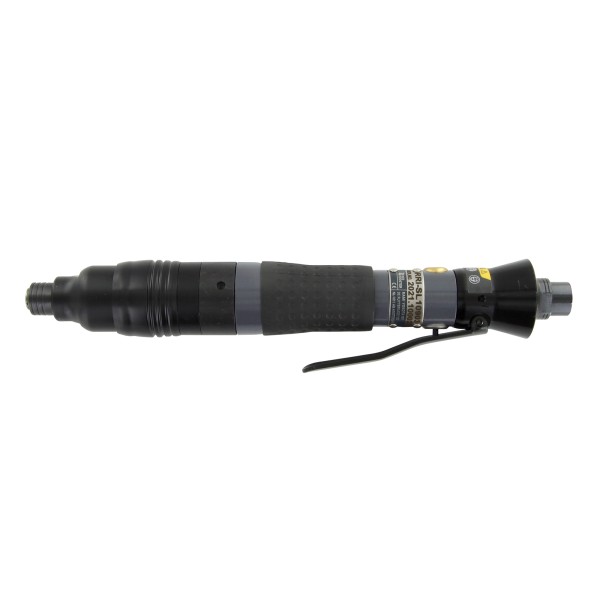

Pneumatic Auto-Shut-Off Straight Screwdriver Red Rooster RRI-SL10704 - 0,8~4,0 Nm

RRI-SL10704 is a professional pneumatic shut-off screwdriver from the Red Rooster Industrial product line, distributed by Rami Yokota. The tool is designed for the assembly industry where precise torque control, high repeatability, and reliable tightening of threaded fasteners are required.

Thanks to its adjustable clutch with automatic shut-off function, the screwdriver stops when the preset torque level is reached, preventing over-tightening and ensuring consistent quality in serial assembly applications.

Main Technical Data

• Design: Straight, lever start
• Torque range: 0.8-4.0 Nm
• Free speed: 700 rpm
• Air consumption: 8.5 l/s
• Bolt capacity: M4
• Weight: 0.69 kg
• Drive: 1/4" hexagon
• Air connection: PT 1/4"
• Maximum air pressure: 0.63 MPa (6.3 bar)
• Recommended hose diameter: 6.5 mm
• Vibration level: <2.5 m/s²
• Noise level: 73 dB(A)

Main Features

• Automatic shut-off function when the preset torque level is reached
• High torque repeatability for reliable serial production
• Adjustable clutch for precise tightening control
• Low reaction forces for improved operator comfort
• Ergonomic straight body design with soft grip
• Lever start for comfortable and controlled operation
• Reversible function for tightening and loosening applications
• Rear exhaust with silencer for reduced noise levels
• Low vibration levels for extended working periods

Applications

RED ROOSTER RRI-SL10704 is suitable for assembly lines and serial production applications involving small and medium threaded fasteners up to M4. It is ideal for industrial applications requiring precise torque control, high productivity, and prevention of over-tightening.
