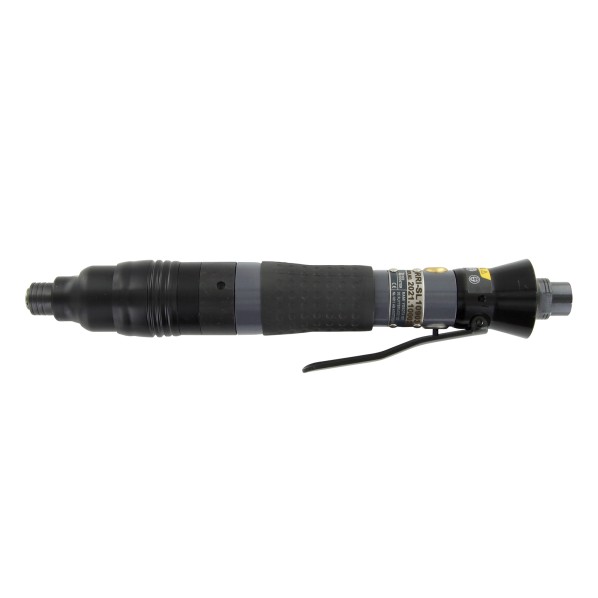

Pneumatic Auto-Shut-Off Straight Screwdriver Red Rooster RRI-SL10903 - 0,8~3,5 Nm

RRI-SL10903 is a shut-off pneumatic screwdriver from the Red Rooster Industrial product line, distributed by Rami Yokota. The tool is designed for professional assembly applications requiring precise torque control, high repeatability and reliable tightening of threaded fasteners. Thanks to its specially designed clutch mechanism, the screwdriver provides low reaction forces, smooth operation and prevents over-tightening.

The ergonomic straight body with soft grip, lever start operation and low noise and vibration levels make the RRI-SL10903 suitable for continuous use in assembly lines and serial production environments.

Technical Specifications

• Design: Straight, lever start
• Torque range: 0.8~3.5 Nm
• Free speed: 900 rpm
• Air consumption: 8.5 l/s
• Bolt capacity: 4 mm
• Weight: 0.69 kg
• Hex drive: 1/4"
• Air connection: PT 1/4"
• Max. air pressure: 0.63 MPa (6.3 bar)
• Recommended hose diameter: 6.5 mm
• Vibration level: <2.5 m/s²
• Noise level: 73 dB(A)

Key Features

• Automatic shut-off when the preset torque value is reached
• High torque accuracy and repeatability
• Low reaction forces thanks to the specially designed clutch mechanism
• Ergonomic straight body design with soft grip for operator comfort
• Reversible function for tightening and loosening operations
• Rear exhaust with silencer for reduced noise levels
• Lightweight and well-balanced design for extended operation
• Easy torque adjustment according to the specific application

Applications

The RED ROOSTER RRI-SL10903 is suitable for assembly industries, production lines and serial manufacturing applications where threaded fasteners up to 4 mm are used. Its precise torque control makes it ideal for assembling components, electrical products, machinery and other applications requiring reliable and repeatable fastening results.
