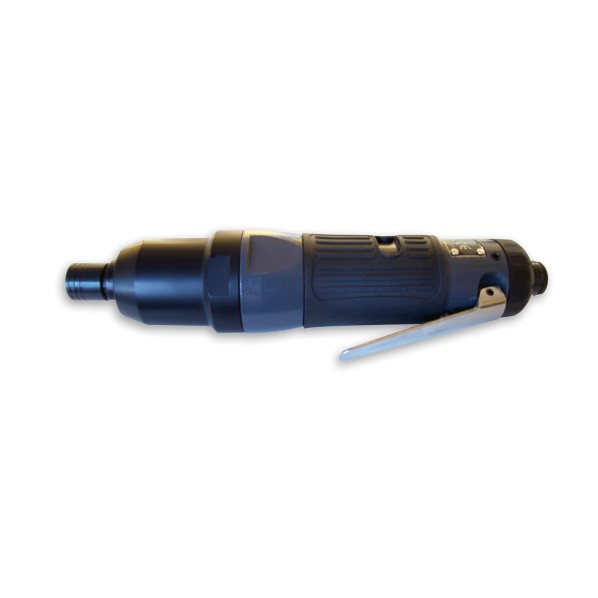

Pneumatic Impulse Wrench RED ROOSTER RRI-30STA - 1/4" Hex, 6-11,5 Nm

RED ROOSTER RRI-30STA is a professional pneumatic impulse screwdriver with automatic shut-off from the industrial pneumatic tools range of Rami Yokota. Designed for serial assembly applications, this model provides precise tightening, high repeatability and reliable torque control for consistent threaded joints.

Thanks to its impulse technology, the tool delivers high fastening performance with minimal reaction forces transmitted to the operator. The automatic shut-off function stops the tool once the preset torque is reached, preventing over-tightening and ensuring consistent assembly quality. The straight-body design allows comfortable operation in narrow and hard-to-reach areas, while the wide-body air motor provides reliable performance in serial production environments.

Main Technical Data

• Maximum bolt size: M6
• No-load speed: 4,200 rpm
• Torque range: 6 – 11.5 Nm
• Weight: 0.77 kg
• Air inlet: PT 1/4"
• Recommended hose diameter: 6.5 mm
• Air consumption: 3.7 l/s
• Drive type: 1/4" Hex
• Tool type: Straight impulse screwdriver with automatic shut-off
• Sound pressure level: 75.7 dB(A)
• Vibration level: 3.6 m/s²

Main Features

• Impulse technology for precise and repeatable tightening
• Automatic shut-off when the preset torque is reached
• Minimal reaction forces for reduced operator fatigue
• Extremely lightweight construction – only 0.77 kg
• Straight-body design for operation in narrow and restricted spaces
• Wide-body air motor for high performance and durability
• Low noise and vibration levels
• High torque repeatability for serial production applications

Applications

RED ROOSTER RRI-30STA is designed for professional assembly operations and serial production involving fasteners up to M6. Its straight-body design makes it ideal for applications in confined spaces, including the production of agricultural machinery, pumps, electric motors, bicycles and other industrial assembly operations where high productivity and repeatable torque control are required.
