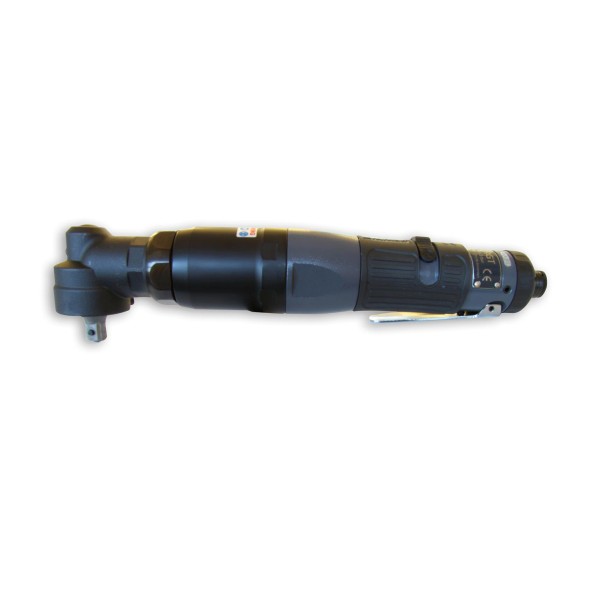

Pneumatic Impulse Wrench RED ROOSTER RRI-70RHT - 1/2", 46-60 Nm

RED ROOSTER RRI-70RHT is a professional pneumatic impulse wrench with 1/2" square drive and adjustable torque range of 46-60 Nm. Designed for serial production applications, it provides consistent and repeatable torque output without reaction forces on the operator. The automatic shut-off mechanism stops the tool when the preset torque level is reached, preventing over-tightening and ensuring reliable quality of threaded connections.

With a weight of only 1.60 kg and a noise level of 76.8 dB(A), the RRI-70RHT offers excellent operator comfort during full-shift industrial assembly operations.

Main technical data

• Maximum bolt size: M10-M12
• Idle speed: 2,200 rpm
• Torque range: 46-60 Nm
• Weight: 1.60 kg
• Air inlet: PT 1/4"
• Recommended hose diameter: 8 mm
• Air consumption: 6.2 l/s
• Square drive: 1/2"
• Type: Angled impulse wrench with automatic shut-off
• Noise level: 76.8 dB(A)
• Vibration level: 11.6 m/s²

Main features

• Impulse technology for precise and repeatable tightening
• Automatic shut-off when the preset torque level is reached
• Minimal reaction forces for improved operator comfort
• Powerful and reliable construction with a weight of only 1.60 kg
• Angled design for hard-to-reach fastening applications
• Wide-body pneumatic motor for high performance and long service life
• Low noise and vibration levels
• High torque repeatability for serial production environments

Applications

RED ROOSTER RRI-70RHT is designed for professional assembly operations and serial production applications requiring controlled tightening of threaded fasteners up to M10-M12. It is suitable for the production of agricultural machinery, pumps, motors, bicycles and other industrial applications where high productivity, reliability and precise torque control are required.
