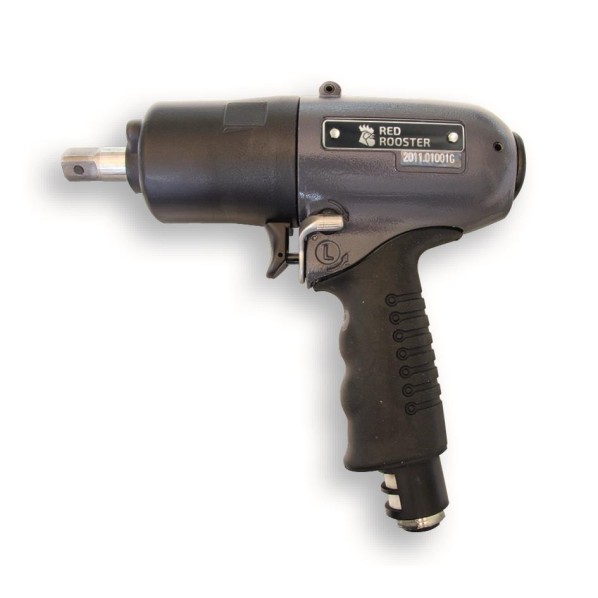

Pneumatic Impulse Wrench RED ROOSTER RRI-90 - 1/2", 64-90 Nm

RED ROOSTER RRI-90 is a professional pneumatic impulse wrench from the range of industrial pneumatic tools by Rami Yokota. The model is designed for serial assembly applications where precise tightening, high repeatability and reliable torque control are required.

Thanks to its impulse technology, the tool provides high tightening power with minimal reaction forces transferred to the operator. The adjustable torque range allows adaptation to various assembly tasks, while the wide-body pneumatic motor ensures high performance, reliability and long service life. The pistol grip design provides excellent comfort during extended production use.

Main technical data

• Maximum bolt size: M12
• Free speed: 5,400 rpm
• Torque range: 64 – 90 Nm
• Weight: 1.53 kg
• Air inlet: PT 1/4"
• Recommended hose diameter: 8 mm
• Air consumption: 8.3 l/s
• Drive: 1/2"
• Type: Pistol grip impulse wrench
• Noise level: 76.5 dB(A)
• Vibration level: 3.0 m/s²

Main features

• Impulse technology for precise and repeatable tightening
• Adjustable torque range for different assembly applications
• Minimal reaction forces for improved operator comfort
• Lightweight and reliable design with a weight of only 1.53 kg
• Pistol grip design for universal assembly tasks
• Wide-body pneumatic motor for high performance and durability
• Low noise and vibration levels
• High torque repeatability in serial production environments

Applications

RED ROOSTER RRI-90 is designed for professional assembly operations and serial production applications with fasteners up to M12. It is suitable for the production of agricultural machinery, pumps, motors, bicycles and other industrial applications requiring high productivity, reliability and precise torque control.
